SOLID STATE RELAYS-LW1A-1
    Publish time 2021-11-16 16:20

SOLID STATE RELAYS-LW1A-1

SOLID STATE RELAYS-LW1A-1



1.Both of Input power and Output power must be DC Voltage.
2.Please make correct polarity connection for input and output power.
3.Inductive load must be connected with back electromotive force to suck up the diode.
4.If the SSR with load above 10Amps,it must be mounted onto heat sink.


Controlling Voltage014:3-14VDC,032:3-32VDC
Controlling Current5-25mA
Make-on Voltage3VDC
Break-off Voltage1VDC
Reverse Voltage32VDC
Load Voltage38:40-440VAC


Load Current60A ~ 150A, 200A ~ 350A
Instant Voltage38:1200VAC
Voltage Dropin On＜1.6VAC


On-off Time≤10mS
Leakage Current in off≤10mA
Dielectric  Strength≥2500VAC
Insulation Resistance500MΩ(at 500VDC)
Ambient Temp.-30~80℃
Weight≈135g(60-150A);≈235g(200-350A



Indicate MethodsLed

94X25X36.2mm(LxWxH) for 60-

150A, 94x34x43(LxWxH)mm for
Dimensions200-350A.
Wirinig DiagramSee Page-2

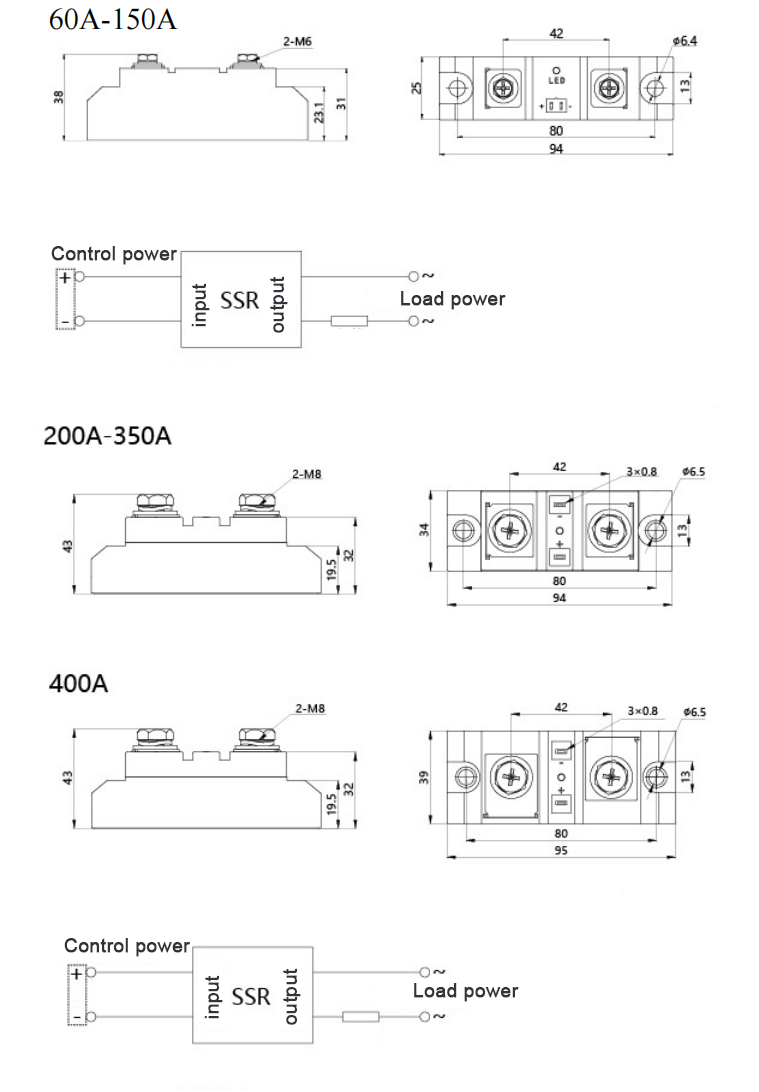

DIMENSIONS (Unit: mm)
