SOLID STATE RELAYS-LW1D-1
    Publish time 2021-11-16 16:20

SOLID STATE RELAYS-LW1D-1

SOLID STATE RELAYS-LW1D-1



1.Both of Input power and Output power must be DC Voltage.
2.Please make correct polarity connection for input and output power.
3.Inductive load must be connected with back electromotive force to suck up the diode.
4.If the SSR with load above 10Amps,it must be mounted onto heat sink.


CHARACTERISTICS

Controlling Voltage014:3-14VDC,032:3-32VDC
Controlling Current6-25mA
Make-on Voltage3VDC
Break-off Voltage1VDC
Reverse Voltage32VDC

AC: 22:30-240VAC, 38:40-

440VAC.

DC:06:12-60VDC,11:12-
Load Voltage110VDC,20:12-200VDC.
Load Current1 A, 2A, 3A, 4A.

AC: 22:600VAC, 38:900VAC;

DC:06:100VDC,11:110VDC,
Instant Voltage20:200VDC.
Voltage Dropin OnAC:＜1.6VAC,DC: ＜1.2VDC


On-off TimeAC: ≤10mS,DC:≤5mS
Leakage Current in offAC: ≤10mA ,DC:≤5mA
Dielectric  Strength≥1500VAC
Insulation Resistance500MΩ(at 500VDC)
Ambient Temp.-30~80℃
Weight22g
Indicate Methods--

Dimensions43x25.5x12(LxWxH)mm
Wirinig DiagramSee Page-2

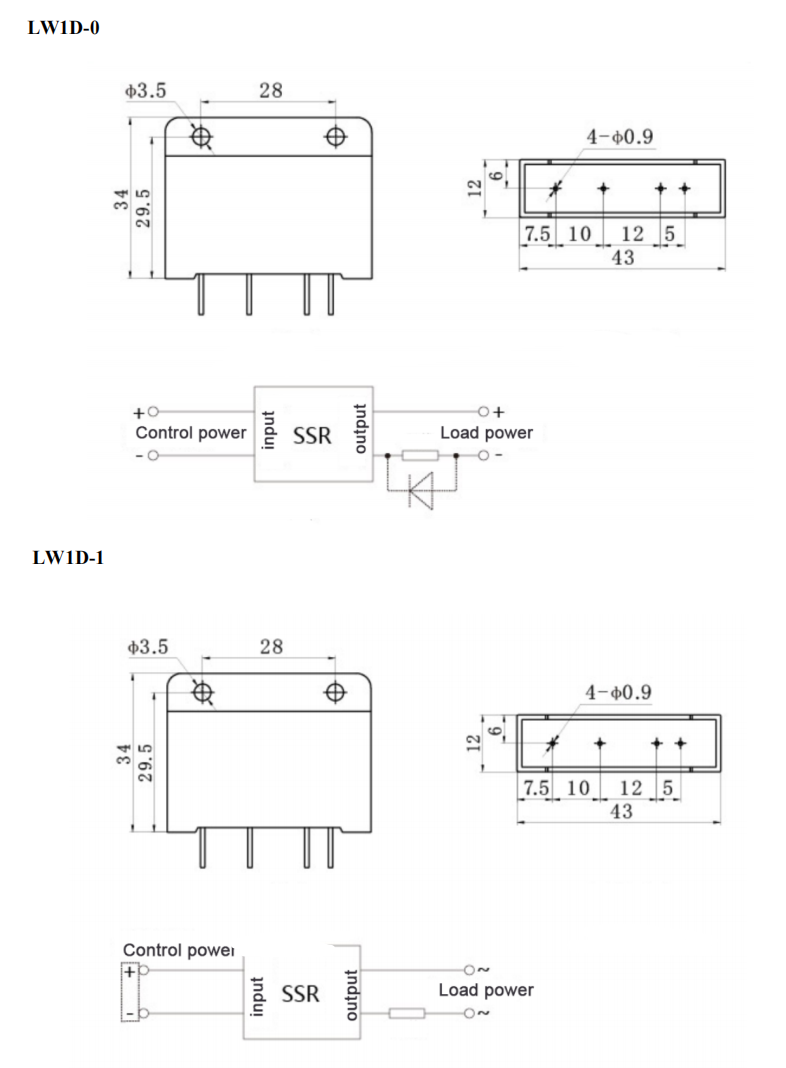

DIMENSIONS (Unit: mm)
