SOLID-STATE RELAY-LW1-0
    Publish time 2021-11-16 16:20

SOLID-STATE RELAY-LW1-0

SOLID-STATE RELAY-LW1-0



1.Both of Input power and Output power must be DC Voltage.
2.Please make correct polarity connection for input and output power.
3.Inductive load must be connected with back electromotive force to suck up the diode.
4.If the SSR with load above 10Amps,it must be mounted onto heat sink.


Controlling Voltage5-32VDC
On-off Time≤5mS
Controlling Current6-25mA
Leakage Current in off≤5mA
Make-on Voltage5VDC
Dielectric  Strength≥2500VAC
Break-off Voltage1VDC
Insulation Resistance500MΩ(at 500VDC)
Reverse Voltage32VDC
Ambient Temp.-30~80℃
Load Voltage12-250VDC
Weight10A~110g,20A~140g,40A~145g
Load Current10 A, 15A, 20A, 25A, 30A, 40A.Indicate MethodsLed
Instant Voltage400VDC
Dimensions57.2x43.5x29(LxWxH)mm
Voltage Dropin On＜1.2VDC
Wirinig DiagramSee Page-2

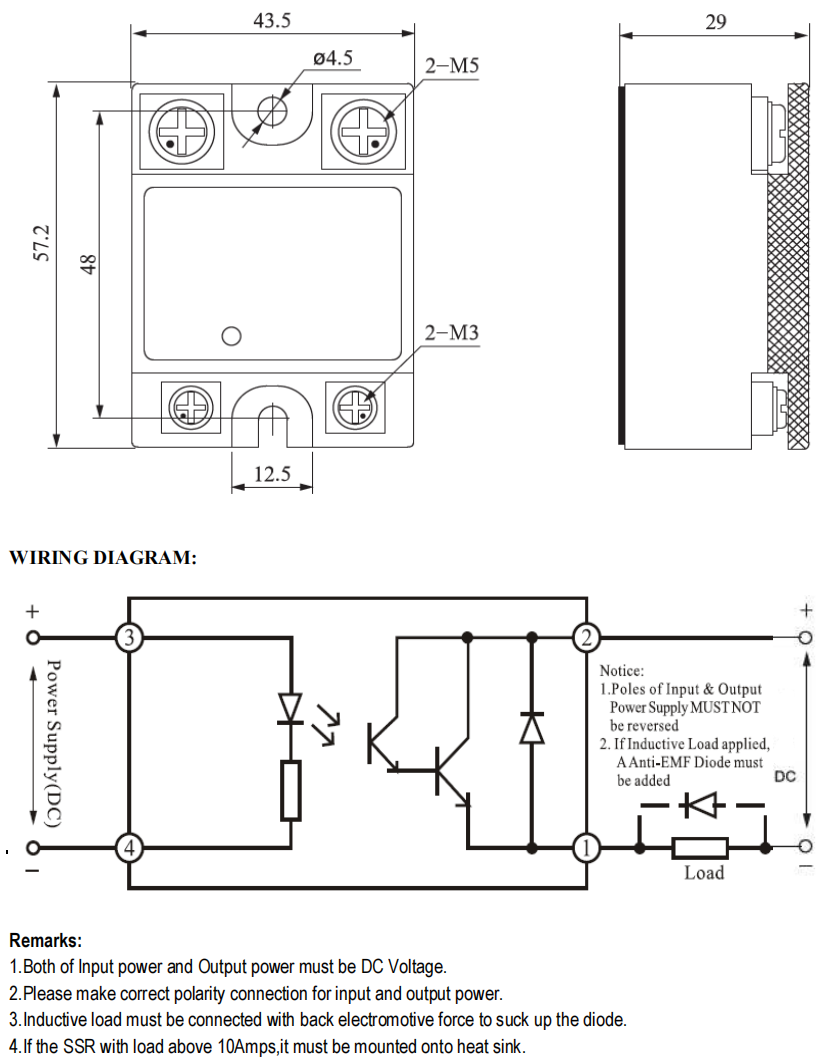

DIMENSIONS  (Unit: mm)
