● For circuit of AC 50Hz, up to 380V or 24VDC
● As per standard GB14048.5-2008 & JB/T 10047-1999
● Long life and low consumption
TECHNICAL DATA
| Rated Voltage | DC24V, AC24V, 220V, 380V | Control Mode | 2Z Delay |
| Delay Range | 1s、5s、10s、 30s、 60s、5min、10min、30min、60min、5h、10h | Contact Capacity | 3A AC220V (Resistive) |

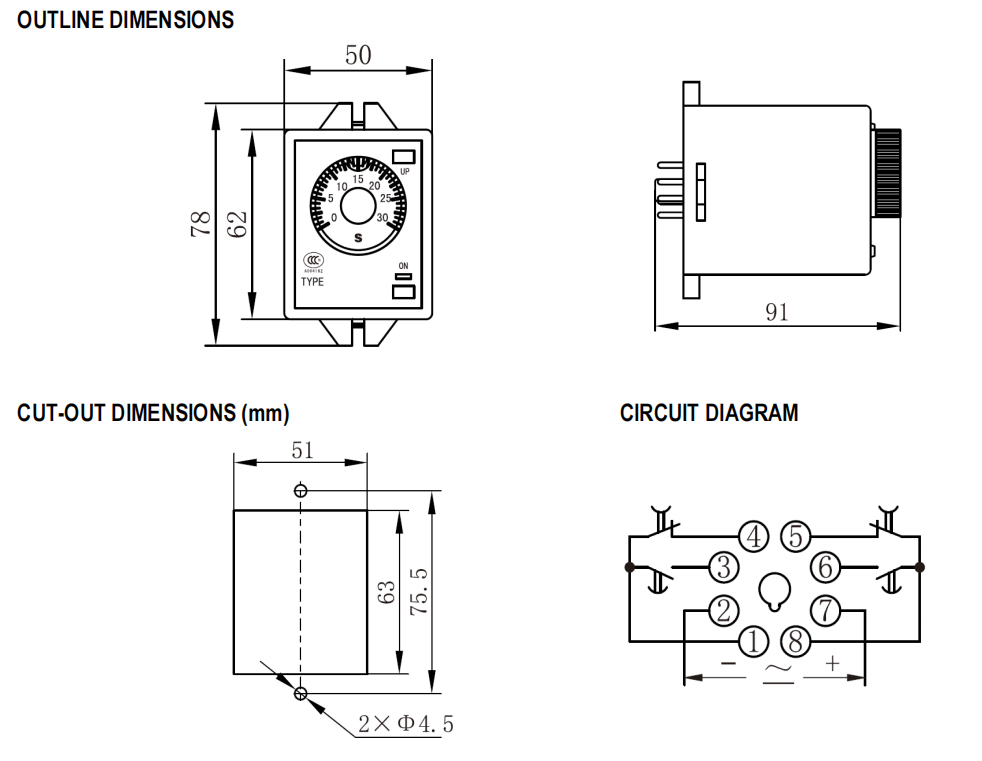

| Outline Dimension | 78 x 50 x 92mm |
| Cut-Out Dimenion | 75.5-2 x Φ4.5mm |
| Repeated Error | ≤1% | Electrical Life | 1x10 5 |
| Working Mode | Power-On Delay | Mounting Mode | Panel |
