● For circuit of AC 50Hz, up to 380V or 24VDC
● As per standard GB14048.5-2008 & JB/T 10047-1999
● Long life and low consumption
| Operation Power | DC24V,AC24V,220V,380V | Contact Arrangement | 2Z DelayWithControlResetFunction |
| Delay Range | 0.01S～99h99mHourMinuteSecondSet | Contact Capacity | 3A AC220V (Resistive) |

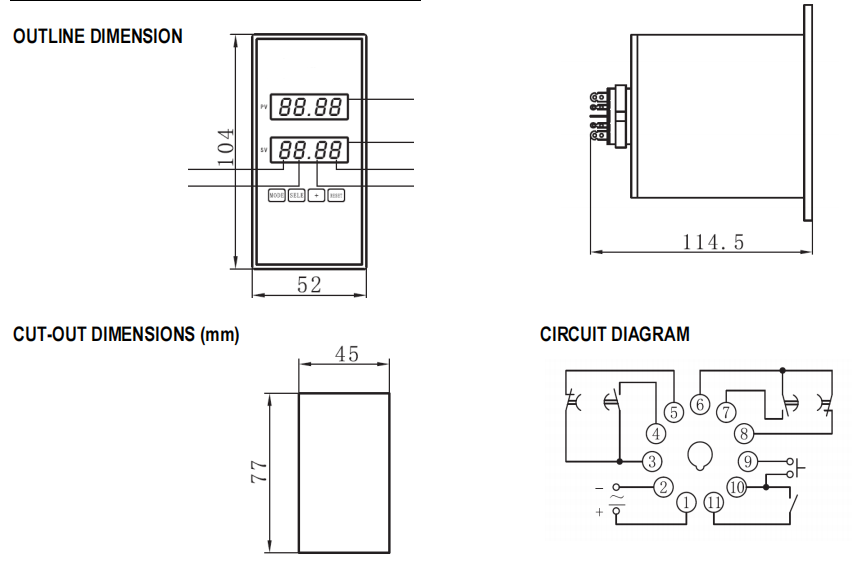

| Outline Dimension | 104 x 52mm x 112mm |
| Cut-Out | 77 x 45mm |
| Repeat Error | ≤1% | Mounting Mode | Panel Type |
| Working Mode | On-delay Time,WithMemoryandWithoutMemory are Available | Electrical Life | 1X10 5 |
| Time Mode | Timing/Countdown DoubleRowDoubleColorDiplay |
