TIME RELAYS-LW3P-M
    Publish time 2021-11-16 16:20

TIME RELAYS-LW3P-M

TIME RELAYS-LW3P-M



● For circuit of AC 50Hz, up to 380V or 24VDC
● As per standard GB14048.5-2008 & JB/T 10047-1999
● Long life and low consumption
● High accuracy,long life



TECHNICAL DATA

Operation PowerDC24V,AC24V,220V,380VContact Arrangement2Z Delay
Delay Range9.9s 99s 9.9m 99m9.9h 99hContact Capacity3A AC220V (Resistive)

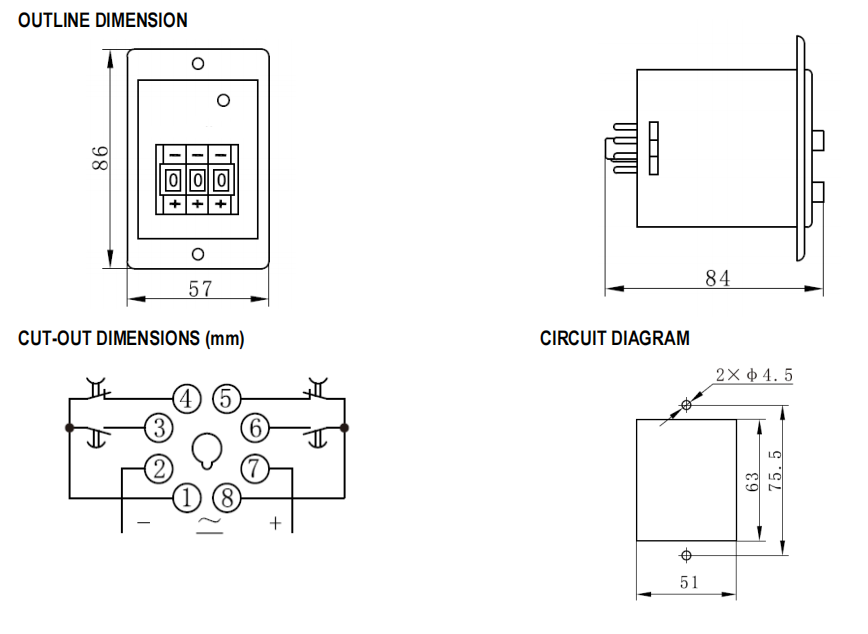

Outline Dimension86 x 57 x 84mm


Cut-Out Dimenion63 x 51mm 75.5 - 2 x Φ4.5mm
Repeated Error≤1%Electrical Life1x10 5
Working ModeOn-delay Time,Mounting ModePanel Type
