● For circuit of AC 50Hz, up to 380V or 24VDC
● As per standard GB14048.5-2008 & JB/T 10047-1999
● Long life and low consumption
TECHNICAL DATA
| Operation Power | DC24V,AC24V,220V,380V | Contact Arrangement | 2Z Delay |
| Delay Range | 9.9s、99s、9.9m、 99m、 9.9h、99h | Contact Capacity | 3A AC220V (Resistive) |

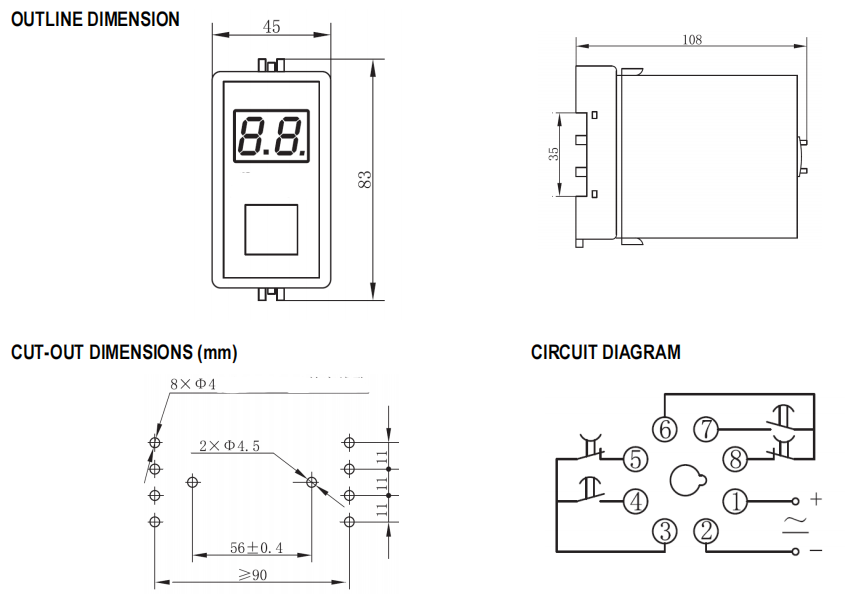

| Outline Dimension | 83 x 45 x 108mm |
| Cut-Out | 56-2 x Φ4.5mm |
| Repeated Error | ≤1% | Mounting Mode | Device Type |
| Working Mode | On-delay Time |
