● For circuit of AC 50Hz, up to 380V or 24VDC
● As per standard GB14048.5-2008 & JB/T 10047-1999
● Long life and low consumption
TECHNICAL DATA
| Operation Power | DC24V,AC24V,220V,380V | Contact Arrangement | 2Z Delay |
| Delay Range | 1s 5s 10s 30s 60s 120s180s 360s 720s 900s | Contact Capacity | 3A AC220V (Resistive) |

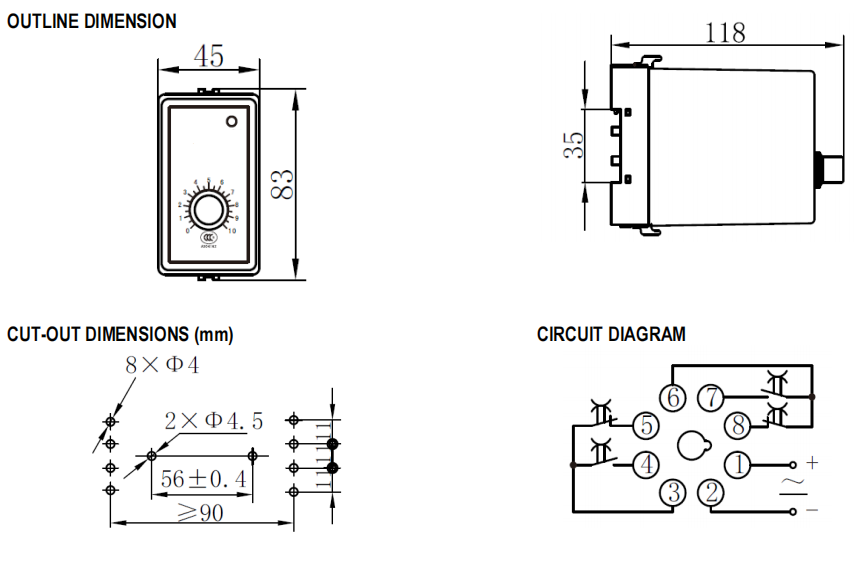

| Outline Dimension | 83 x 45 x 118mm |
| Cut-Out | 56 - 2 x Φ4.5mm |
| Repeated Error | ≤1% | Mounting Mode | Device、 35mm Din-rail |
| Working Mode | Cycling Delay Time, |
