Current Transformer LMZJ
    Publish time 2022-12-13 16:20

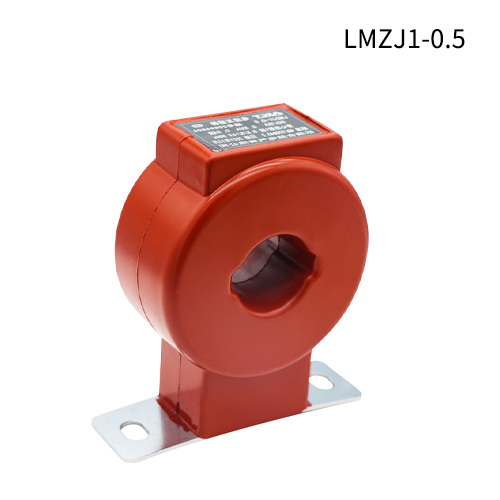

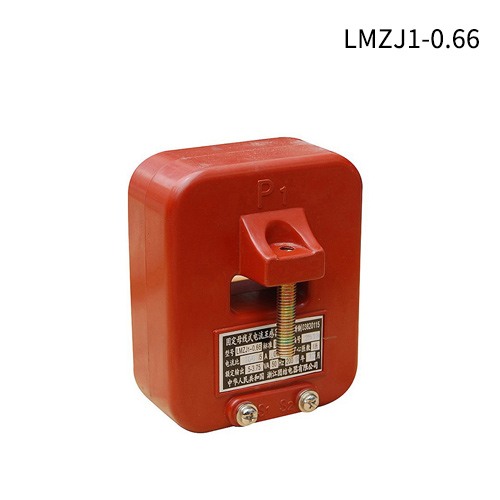

Current Transformer LMZJ


Current Transformer LMZJ


Introduce:

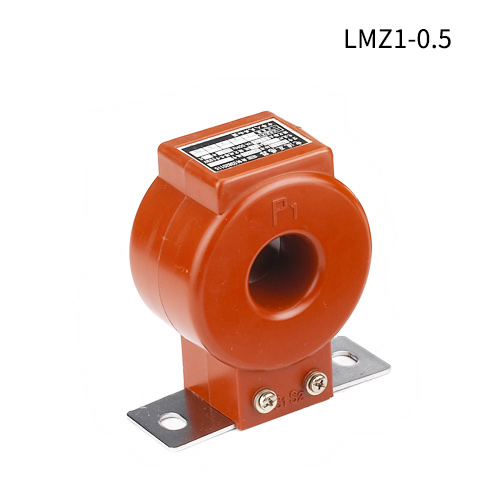

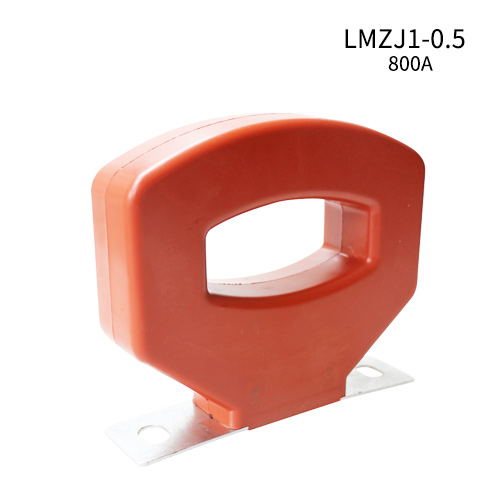

LMZ and LMZJ ranges of current transformers are mainly used indoors.

For a rated voltage of 0.5kV and below rated frequency of 50Hz AC circuit as the current energy measurement or relay use.

Features:

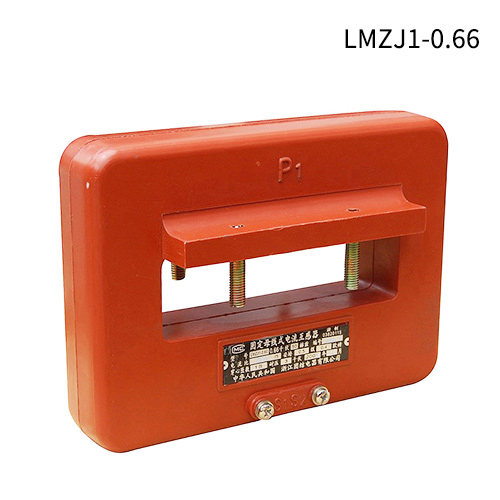

  • The structure of the self-locking, safe, easy to install, portable.

  • Wide inner window, allowing clamping of big cables or bus-bars.

  • Wide range of sizes to accommodate all the existing installations.

Applications:

  • Current measurement, monitoring and piotection for electrical wiring and equipment.

  • Current and power measurement for electric motors, lighting,air compressor, heating and ventilation system.

  • Air-condition equipment and Current, power and energy monitoring device.

  • Relay protection device.


Electrical ParameterMechanical Parameter
Frequency50/60HzCasePC/UL94-V0
Rated Input5A-5000ABobbinPBT
Measuring range5%In-120%InCoreSilicon steel
Rated Output1A,5AConstructionScrew
Ratio Voltage0.72KV (AC)Operating Temp－25℃～＋75℃
Dielectric strength3.0KV/1mA/1minOperating Humidity≤85%
Insulation ResistanceDC500V/100MΩ minOutput ConnectionTerminal

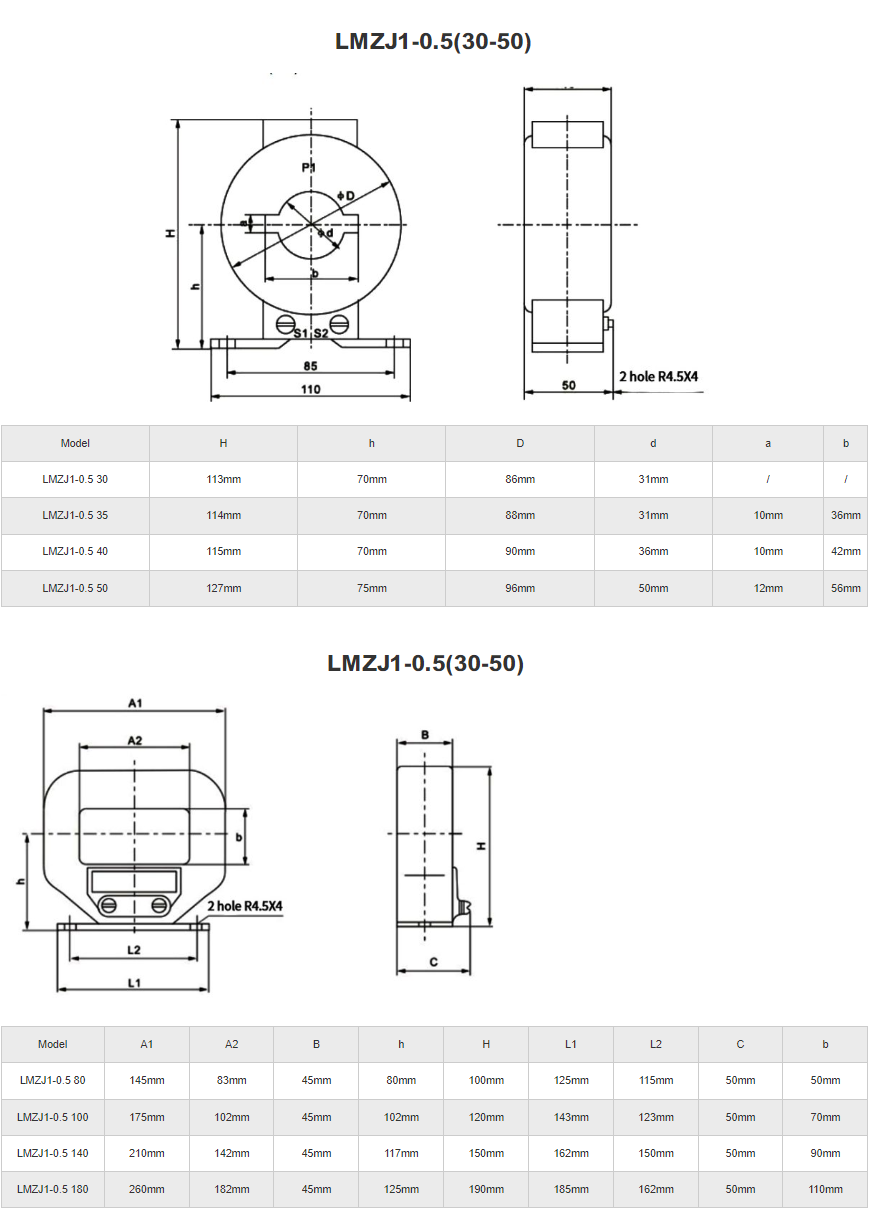

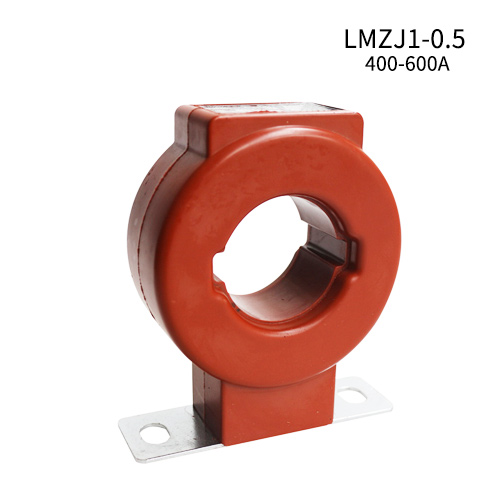

ModelPrimary / SecondaryBusbar Hole Dimensions(mm)Rated Burden (VA)Accuracy ClassRated Voltage
LMZJ1-0.5  305/5A~300/5Aø=31mm2.5~50.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  355/5A~300/5Aø=35mm2.5~50.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  40200/5A~500/5Aø=42mm50.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  50400/5A~600/5Aø=56mm50.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  80750/5A~1200/5Aø=83mm10~200.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  100800/5A~2000/5Aø=102mm10~300.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  1402000/5A~4000/5Aø=142mm15~300.2S  0.5S  0.50.72KV(AC)
LMZJ1-0.5  1805000/5A~6000/5Aø=182mm15~300.2S  0.5S  0.50.72KV(AC)
