Split Core Current Transformer OCT
    Publish time 2022-04-18 16:20
Split Core Current Transformer OCT


Split Core Current Transformer OCT


Introduce:

ASCT brand OCT Type of waterproof outdoor split core current transformer is HEYI Electrical company new desgin waterproof split core current transformer,can be applied to test,control,display and record the running of the electrical equipment,and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to from a complete set of transformer

Features:

  • Use high permeability silicon steel.

  • Outdoor , waterproof IP65,dust proof.

  • Secondary winding employ with high qualityepoxy resin casting in plastic case which is flame retardant, anti-moisture,stable performance.

  • Split core and full sealed ,use sealedwater proof cable as secondary leading wire.

Applications:

  • Power quality monitoring

  • Power instrument and meter

  • Distributed measurement systems

  • Measurement of current of power supplyequipment below 10KV

  • Microcomputer protection


Technical parameters
Standards-IEC60044-1;IEC61869-2;NTC2205;GB1208-2006
Accuracy class0.5%,1%
Range of primary rated current100-1200A
Range of rated load2.5VA,5VA,10VA
Range frequency50/60Hz
Rated secondary current5A or 1A
Secondary winding power frequency  withstand voltage3kV , 1min
Safety Factor Rating(FS) ＜5

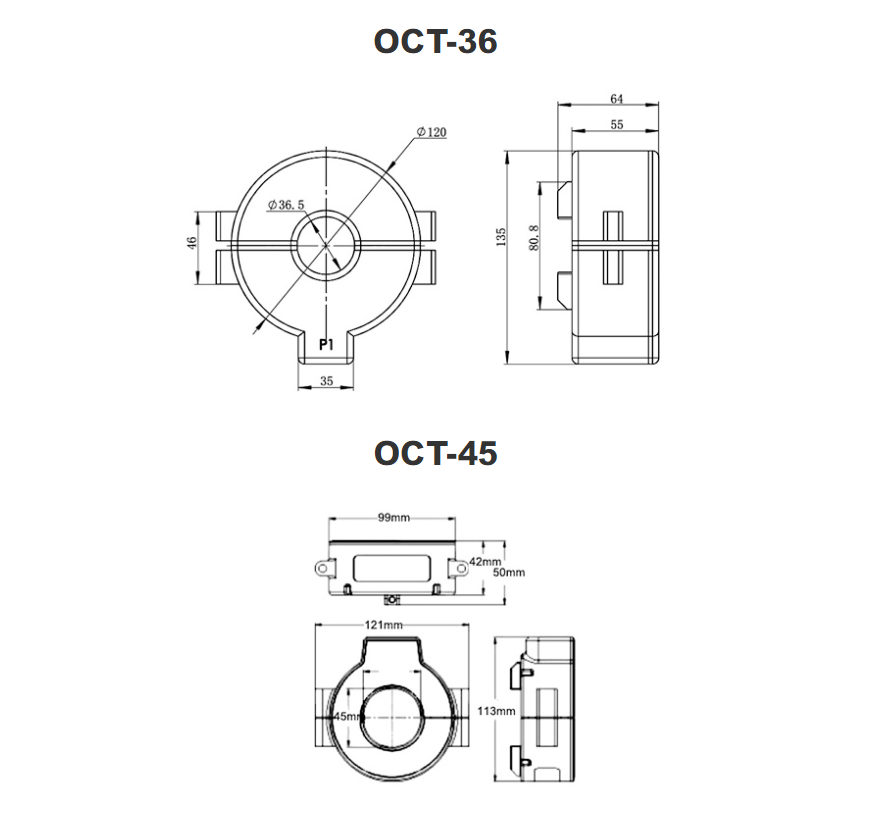

Mechanical parameters
Aperture(mm)Ø55
Dimensions(W*D*H)(mm)180*138*52
Weight(kg)2
Working conditions
Operating temperature-35oC+55oC ,not exceeding +40oC
EnvironmentOutdoor or indoors
The Height of above sea level0-3000m
ConditionsNo existence of severely begrimed,  erosive and radioactive gas in the air. Continuous working under the rated  current is allowed
