Split Core Current Transformer UK
    Publish time 2022-05-20 16:20
Split Core Current Transformer UK


Split Core Current Transformer UK


Introduce:

UK Series split-core current transformer has been specially designed to facilitate their installation in new or already existing networks.
They may be installed without opening any cable or bus-bar circuit.An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.It can save time and the installations costs.

Features:

  • Doubie-screw fastening,safe,easy to install,portable.

  • Wide inner window,allowing clamping of big cables or bus-bars.

  • Wide range of sizes to accommodate all the existing installations.

Applications:

  • Current measurement, monitoring and piotection for electrical wiring and equipment.

  • Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

  • Current,power and energy monitoring device.

  • Relay protection device.


Electrical ParamenterMechanical Parameter
Frequency50-400HzCasePA/UL94-V0
Rated Input100A-1000ABobbinPA
Measuring range5%In-130%InCoreSilicon steel
Rated Output5A/1AInternal structureEpoxy
Ratio≤±0.5%ConstructionTie
Phase angle≤±30minOperating Temp-40°C~+120°C
Dielectric strength2.5KV/1mA/1minOperating Humidity≤85%
Insulation ResistamceDC500V/100MΩminOutput ConnectionTerminal
RatioBurden(VA)
class:0.5class:1.0class:3.0
100/5A1.52.53.75
150/5A1.52.53.75
200/5A1.52.55
250/5A1.52.55
300/5A2.52.55
400/5A2.53.755
500/5A2.53.755
600/5A2.53.755
800/5A51015
1000/5A51015
RatioBurden(VA)
class:0.5class:1.0class:3.0
100/1A1.52.53.75
150/1A1.52.53.75
200/1A1.52.55
250/1A1.52.55
300/1A1.52.55
400/1A2.53.755
500/1A2.53.755
600/1A2.53.755
800/1A51015
1000/1A51015

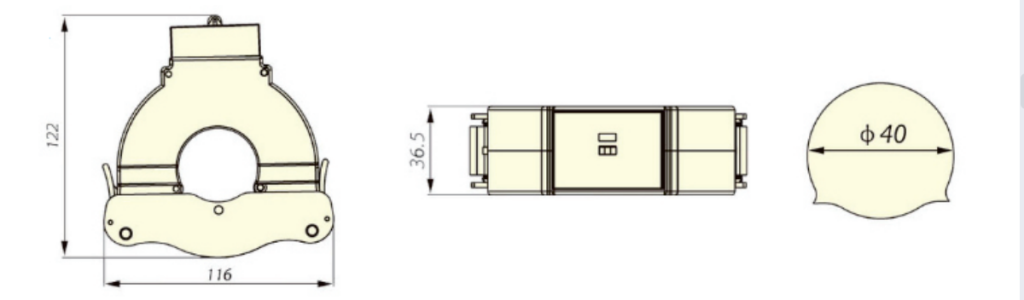

Dimensions

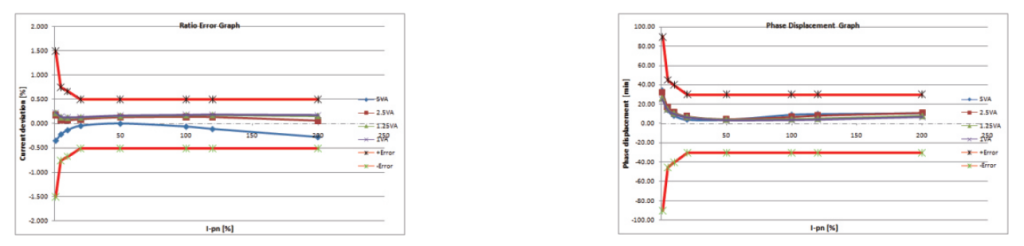

Accuracy Test
