MICRO SWITCHES-LW-10
    Publish time 2021-11-16 16:20

MICRO SWITCHES-LW-10

MICRO SWITCHES-LW-10



● Economical, subminiature, long service life
● Free from overtravel restrictions, easy setting
● Standard operating force, low force force
● RoHS Compliant

◆ Ordering Information


LW- □ □ □ □ □ □
① ② ③ ④ ⑤ ⑥

1. Ratings

2. Actuator

3. Maximum Operating Force

5: 5A at 250VAC

None: Pin plunger

None: 1.1N

10: 10A at 250VAC

Z: Hinge lever

F1:1.9N


W: Simulated roller lever

F2:2.7N


G: Hinge roller lever

F3:3.6N

4. Contact Form

5. Terminals

6. Shell Material

None: SPDT

None: Solder terminals

None: PMC

2: SPST-NC

T: Quick-connect terminal (#110)

P: PBT

3: SPST-NO

D: PCB terminals (Even pitch)



D1: Left angle PCB terminals



D2: Right angle PCB terminals


SAFETY APPROVAL

UL61058                                                                                       CQC

CSA-C22.2 No.61058-1                                                             GB15092.1-2003

Rated voltage

Rated current

Rated voltage

LW- J10

LW- J5

AC125V

5A

AC125V

10A

5(2)A

AC250V

5A

AC250V

10A

5(2)A

ENEC (EN61058-1)

Rated voltage

LW- J1

LW- J5

LW- J10

AC125V

0.5A

5A

10A

AC250V

0.5A

5A

10A 5(2)A

Characteristics

Item Type

NL-10 / NL-5

Allowable operating speed

0.1~1000 mm/s or 0.5~1000 mm/s

Operatingfrequency

Mechanical

Max.: 200 times/min

Electrical

Max.: 30 times/min

Insulation resistance

Min.: 100MG (500VDC)

Contact resistance

50mG

Dielectricstrength

BTW same polarity terminals

AC1000V 50/ 60Hz 1min

BTW current-carrying parts

AC1500V 50/ 60Hz 1min

BTW terminal & metal parts

AC1500V 50/ 60Hz 1min

Vibrationresistance

Malfunction

10~55Hz amplitude 1.5mm

Shock

Durable

1000 m/s

Malfunction

300 m/s

Expected life

Mechanical life

Min.: 1x106 ( 60 times/min)

Electrical life

Min.: 1x105 ( 30 times/min)

Protection degree

IP40

Ambient operation temperature

0℃~+125℃

Ambient humidity

85%RH

Weight

Approx. 1.6g (pin plunger type)

CONTACT SPECIFICATION

Item

NL-10

NL-5


Specification

Rivet

Material

Silver alloy

Gap (Standard value)

0.5mm

Inrushcurrent

NC

20A max.

20A max



NO

15Amax.

10SAmax


Minimum applicable load

160mA at 5VDC

OPERATING CHARACTERISTICS

Operating

perfomance

NL-10

NL-5

NL-10F1

NL-5F1

NL-10F2

NL-5F2

NL-10F3

NL-5F3

OF max.

1.0±0.3

1.5±0.4

2.3±0.4

3.2±0.5

RF min.

0.15

0.35

0.55

0.55

PT max.

0.6mm

0.6mm

0.6mm

0.6mm

OT min.

0.5mm

0.5mm

0.5mm

0.6mm

MD max.

0.2mm

0.2mm

0.2mm

0.2mm

OP

8.55±0.2mm


MOUNTING HOLES

94817810

All switches may be panel mounted using M2.3 mounting screws with
plane washers or spring washers to securely mount the switch.
Tighten the screws to a torque of 0.23 to 0.26 N·m.

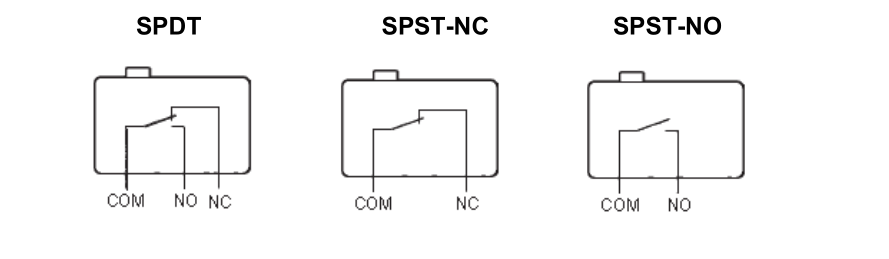

CONTACT FORM

530f06ad

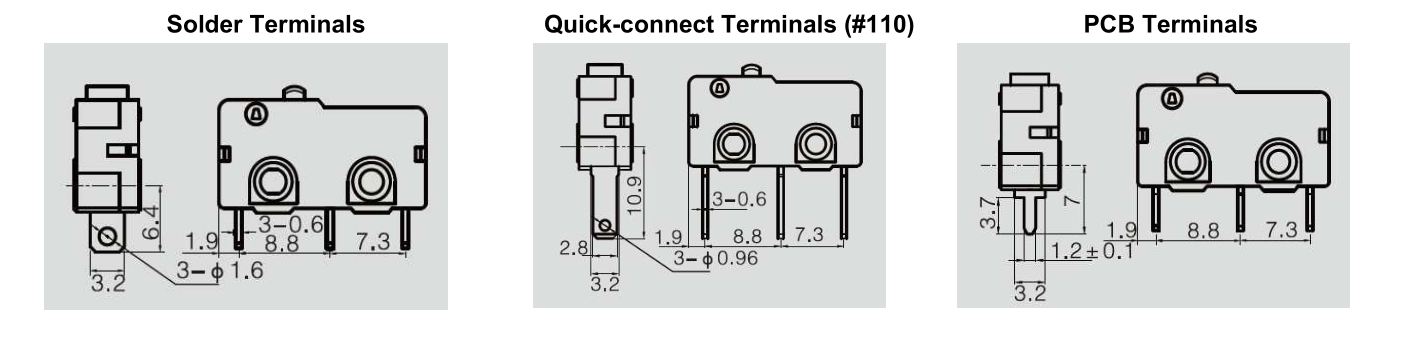

TERMINAL

62df503d

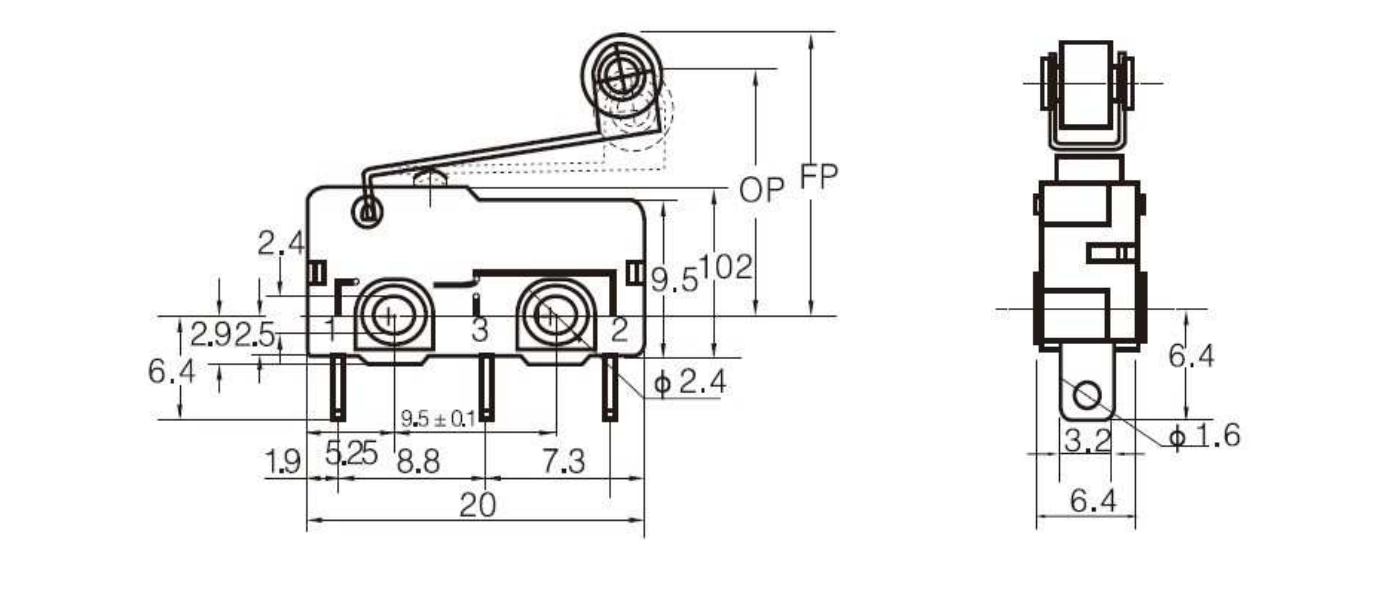

DIMENSIONS (mm)
Hinge Roller Lever Models

9397c2b4
