Split Core Current Transformer LW-KCT-16
    Publish time 2022-11-03 16:20
Split Core Current Transformer LW-KCT-16


Split Core Current Transformer LW-KCT-16


Introduction:

Loc Will Split Core Current Transformer LW-KCT-16-series

The LW-KCT-16 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.


Applications:

●  Current Measurement

●  Monitoring & Protection


Advantages:

●  Mount easy

●  Excellent linearity over the whole range

●  CE RoHS Compliant.



Rated Primary Current (Amp.)

50A,60A,75A,100A,120A,150A,200A,

Max. Current (continuous)

300A

Turn ratio(recommend)

1000:1,

2000:1,

2500:1,

3000:1,

4000:1,

5000:1,

Secondary output -Current (recommend)

20mA

30mA

40mA

50mA

Customizable

Secondary output -Voltage (recommend)

0.333V

1V

3V

Customizable

Accuracy @RL≦30 Ω

≦±0.5%

Phase error at rated current range

≦1.5˚

Test Frequency

50-60Hz

Operating Temperature Range

-25~60℃

Storage Temperature Range

-25~75℃

Operate humidity

5% to 60% relative humidity

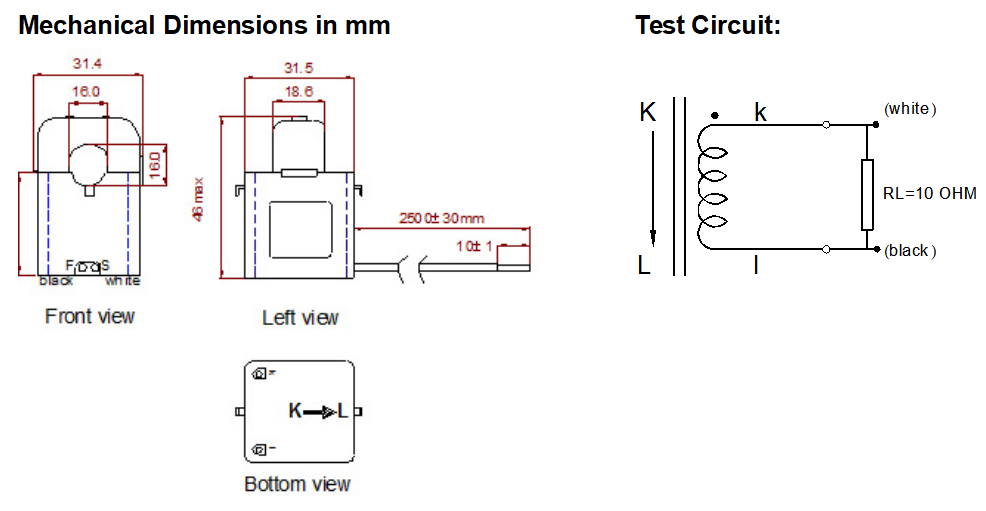

Window size

16mm

Insulation Resistance

DC500V/100MΩ min

Temperature error of current ratio

<50ppm/K


Housing

PA66

Opening Angle

180 degree

Cable

UL1015 24AWG (600V,105℃) black and white

Length:1m,2m,2.5m,3m,5m,10m,15m

Approx.Weight

130g

Bobbin

PA66
