LW71G HIGH POWER RELAYS
    Publish time 2021-11-16 16:20

HIGH POWER RELAYS-LW71G

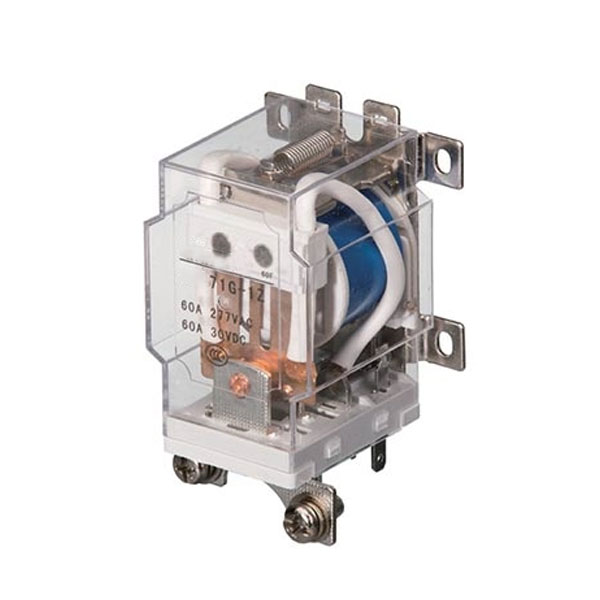

LW71G HIGH POWER RELAYS



● High-powe r Relay
● Long life
● High contact load

Arrangement                        1A/B/C


Contact Material

Silver Alloy

Contact Resistive

Max.: 100 mΩ

Rating

Resistive load  (cosφ=1)



60A 250VAC/30VDC

Max. Switching Voltage

250VAC

Max. Breaking Capacity

15000VA

Expected life


Mechanical

1×107

Electrical

1×105


CHARACTERISTICS



Operate Time                                                                                      25msec.  Max.


Release Time

15msec.  Max.

Initial breakdown voltage Between Coil & Contact

Between Open  Contacts



2500VAC (50/60Hz) for 1 min.

1500VAC (50/60Hz) for 1 min.

Insulation Resistance

Min.500MΩ  (500 VDC)

Shock:             Endurance

10G

Damage

100G

Vibration          Endurance

10 to 55Hz, 1.0mm D.A.

Damage

10 to 55Hz, 1.0mm D.A.

Ambient temperature

-25C~+55C

Unit weight

160g

COIL DATA (at 20℃)

Rated Voltage

Pick-up Voltage

VDC (Max)

Drop-out Voltage

VDC (Min)

Coil Resistance

(Ω)  ± 10%

Nominal operating Power

Max.Allowable Voltage

(VDC)

12VDC

9.00

1.20

72.00



2.0W






110% of nominal voltage

24VDC

18.00

2.40

288.00

48VDC

36.00

4.80

1152.00

110VDC

82.50

11.00

6050.00

12VAC

9.60

3.60

5.90



8.6VA

24VAC

19.20

7.20

23.40

48VAC

38.40

14.40

94.00

220VAC

176.00

66.00

1970.00

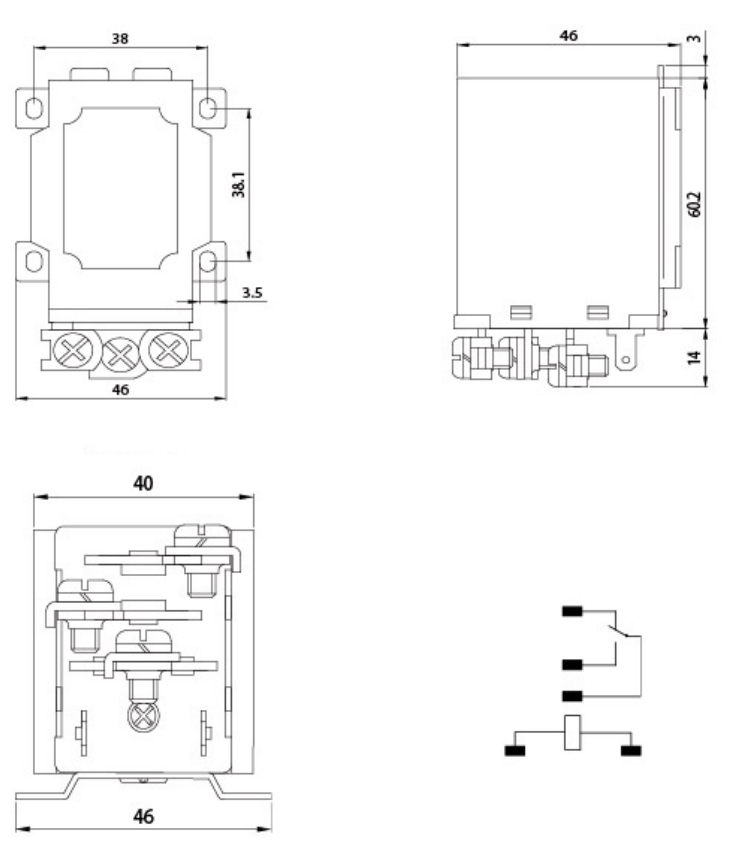

DIMENSIONS

Unit: mm
