SOLID STATE RELAYS-LW6-1 10A&15A
    Publish time 2021-11-16 16:20

SOLID STATE RELAYS-LW6-1 10A&15A

SOLID STATE RELAYS-LW6-1 10A&15A



● High load voltage - up to 480VAC

● 4 ~ 32VDC or 90~250VAC control voltage

● Single Phase, Zero cross-over switching

● LED control input indicator

● Integrated heatsink with DIN rail mounted

● RoHS Compliant

● UL pending




Output (load)
Load typeSPST-NO (1 N/O) Resistive
Load current10A, 15A
Load switching voltage

AC Vrms

40 - 480V
Maximum peak voltage

AC Vpk

900V
Minimum load current0.1A
Inrush Current (max.)

10ms

10A: 120A / 15A: 160A
I2t10A: 72A2s / 15A: 128A2s
Switch typeZero Cross (Consult factory for Random)
On voltage drop

V AC

1.6V
Leakage current off

mA

≤ 10mA
Input (control)
Control voltage (rated)

V

DC Control: 4 - 32VDC
Control current

mA

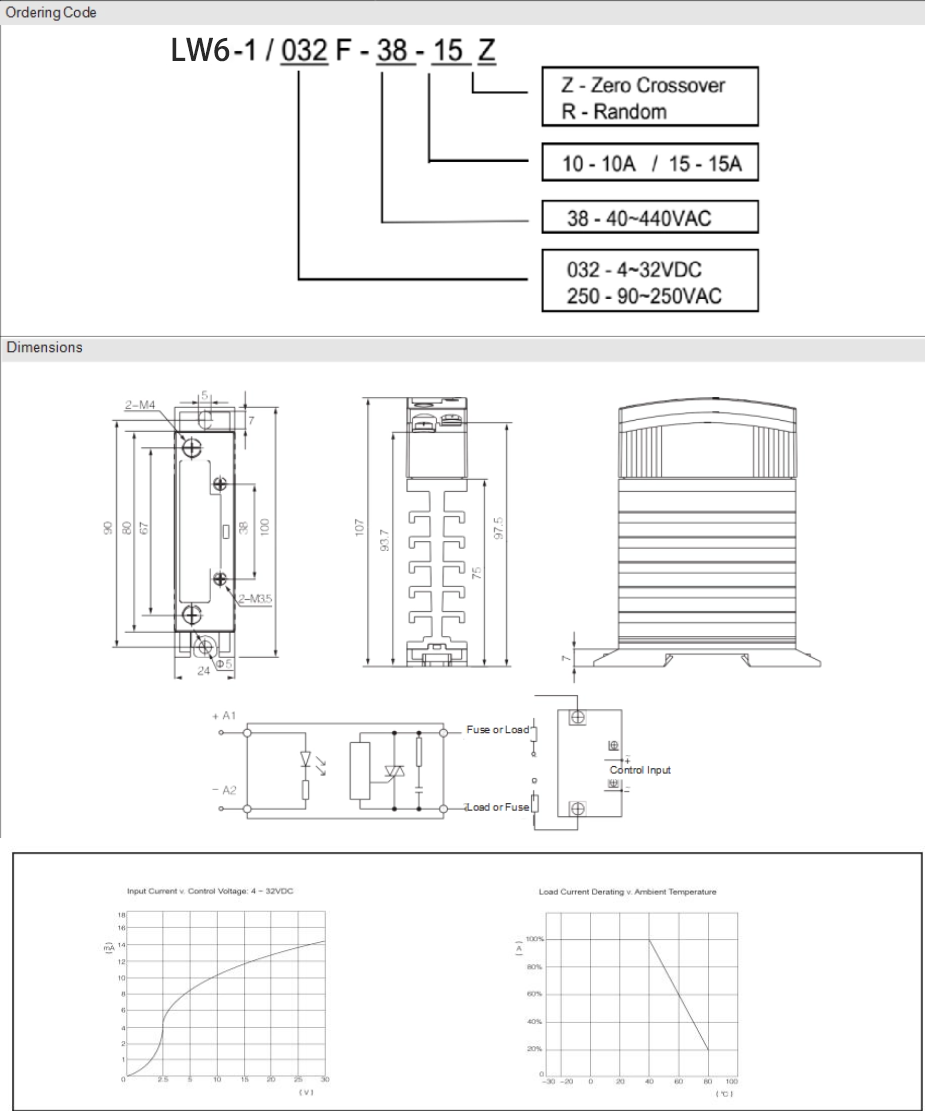

< 20mA (voltage dependent - see Fig. 2)
Turn-on voltage (min)

Vmin

DC Control: 3.5VDC
Turn-on voltage (max)

Vmax

DC Control: 35VDC
Turn-off voltage

V

DC Control: 2VDC
Insulation
Insulation resistance≤ 500MΩ at 500VDC, 50%RH
Dielectric strength

V AC

≥ 2500V
General Data
Operating time (typical)

mS

Approximately 1/2 cycle of load frequency + ≤1ms
Release time (typical)

mS

Approximately 1/2 cycle of load frequency + ≤1ms
Dimensions

L x W x H

100 x 24 x 107mm
Weightapprox. 228g
Ambient temperature

storage

-30 to 100°C (No icing or condensation)

operating

-30 to 80°C (with derating). (No icing or condensation)
Relative Humidity
45 - 85% RH
