SOLID-STATE RELAY LW6H-1 60A80A
    Publish time 2021-11-16 16:20

SOLID-STATE RELAY LW6H-1 60A80A

SOLID-STATE RELAY LW6H-1 60A80A

● Enhanced load voltage-up to 660VAC with high power dual SCR output.

● 4 ~ 32VDC or 90~250VAC control voltage

● Single Phase, Zero cross-over switching

● LED control input indicator

● Integrated heatsink with DIN rail mounted

● RoHS Compliant

● UL pending




Output (load)

Load type
SPST-NO (1 N/O) Resistive
Load current
60A, 80A
Load switching voltage

AC Vrms

60 - 660V
Maximum peak voltage

AC Vpk

900V
Minimum load current
0.1A
Inrush Current (max.)

10ms

60A: 720A / 80A: 1000A
I2t
60A: 2600A2 s / 80A: 5000A2s
Switch type
Zero Cross (Consult factory for Random)
On voltage drop

V AC

1.6V
Leakage current off

mA

≤ 10mA

Input (control)

Control voltage (rated)

V

DC Control: 4 - 32VDC / AC Control:90 - 250VAC
Control current

mA

< 20mA
Turn-on voltage (min)

Vmin

DC Control: 3.5VDC / AC Control:80VAC
Turn-on voltage (max)

Vmax

DC Control: 35VDC / AC Control:280VAC
Turn-off voltage

V

DC Control: 2VDC / AC Control:40VAC

Insulation

Insulation resistance≤ 500MΩ at 500VDC, 50%RH
Dielectric strengthV AC  ≥ 2500V

General Data


Operating time (typical)

mS

Approximately 1/2 cycle of load frequency + ≤1ms

Release time (typical)

mS

Approximately 1/2 cycle of load frequency + ≤1ms

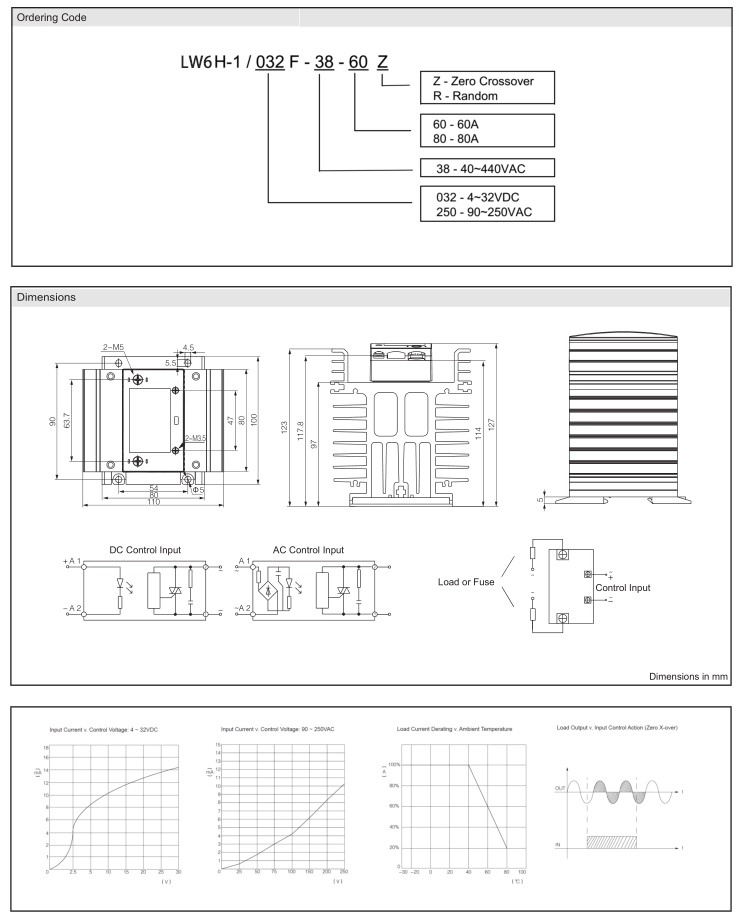

Dimensions

L x W x H

100 x 110 x 127mm

Weight
approx. 940g

Ambient temperature

storage

-30 to 100°C (No icing or condensation)


operating

-30 to 80°C (with derating). (No icing or condensation)

Relative Humidity
45 - 85% RH
