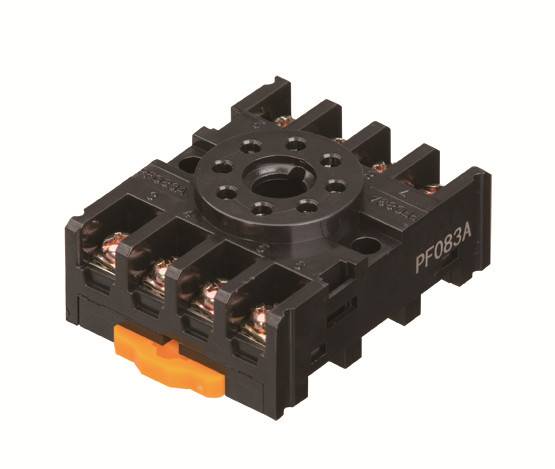

PF083A SOCKETS FOR RELAYS
Publish time 2021-11-16 16:20
PF083A SOCKETS FOR RELAYS
SPECIFICATION
| Rated Load | Current | 12A |
| Voltage | 300V |
| Dielectric Strength | 2500V |
| Ambient Temperature | -40～+75℃ |
| Socket Material | Flame retardancePA66+GF(V1/V0) |
| Contacts Spring Material | QSn6.5-0.1 |
| Clamp Spring Material | Plastic |
| Module | No |

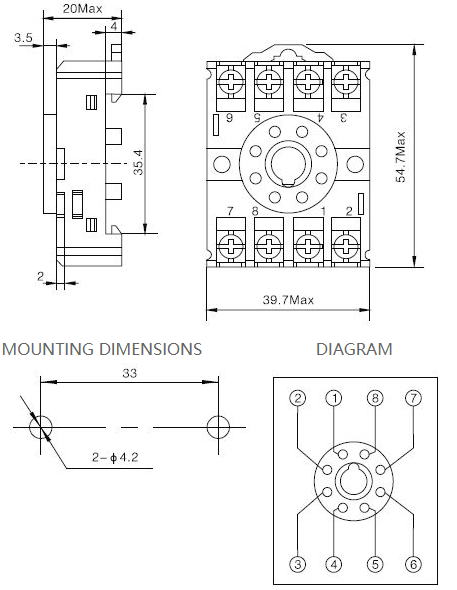

OUTLINE DIMENSIONS
