LW709N 16A MAGNETIC LATCHING RELAYS
    Publish time 2021-11-16 16:20

LW709N 16A MAGNETIC LATCHING RELAYS

LW709N 16A MAGNETIC LATCHING RELAYS

◆  Characteristic

＞ Small size, 16A switching capability.
＞ Low coil consumption, ultra-low temperature rise.
＞ Low contact resistance.
＞ Strong anti-shock and anti-vibration capability.
＞ Outline size: 30.2×13.6×22.8mm.


◆ Ordering Information

0c2c93c1①  Latching Relay
② Part Number
③  Coil Voltage
④  D= Double Coil; S= Single Coil
⑤  16=16A

◆  Characteristics

Insulation resistance500MΩ (500VDC)
DielectricStrengthBetweenCoil&Contacts4000VAC 1min
Between Open Contacts1000VAC 1min
Operate Time15msec. Max.
Release Time15msec. Max.
ShockresistanceFunctional100m/S 2 (10g)
Destructive1000m/S 2 (100g)
Vibration resistance10~55Hz 1.5mm
Humidity98%RH ,40℃
Ambient temperature-40~+70℃
TeminationPCB
Unit weight13.5g
ConstrutionSealed

◆ Contact Data

Contact form1A/1B
Contact materialAgSnO2
Contact resistanceMax: 20mΩ
Contact Rating16A 250VAC
Max. Switching Power4000VA
Mechanical life1×10 6
Electrical life1×10 4

◆  Coil

Coil powerSingle coil: 1.0W Double coil: 2.0W

◆  Coil Data

Rated VoltagePick-up voltagePulse DurationCoil Resistance
Single coil
96.755081±10%
12950144±10%
241850576±10%
4836502304±10%
Double coil
96.75502×40.5±10%
129502×72±10%
2418502×288±10%
4836502×1152±10%

Note: Special ordering for other coil voltage.

◆ Typical Application

Prepayment Energy Meter; AMR System;
Compound Switch; Automatic Control System.

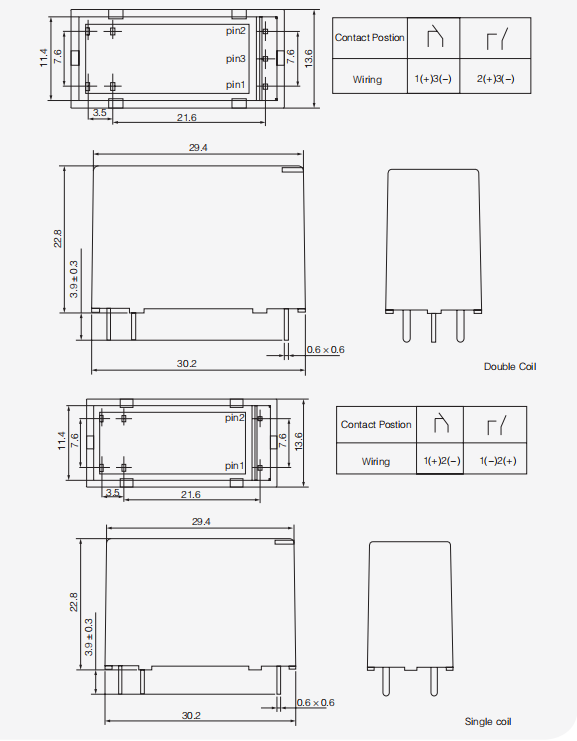

◆ Dimensions(mm)/  Circuit Diagram
