LW715C 80A MAGNETIC LATCHING RELAYS
    Publish time 2021-11-16 16:20

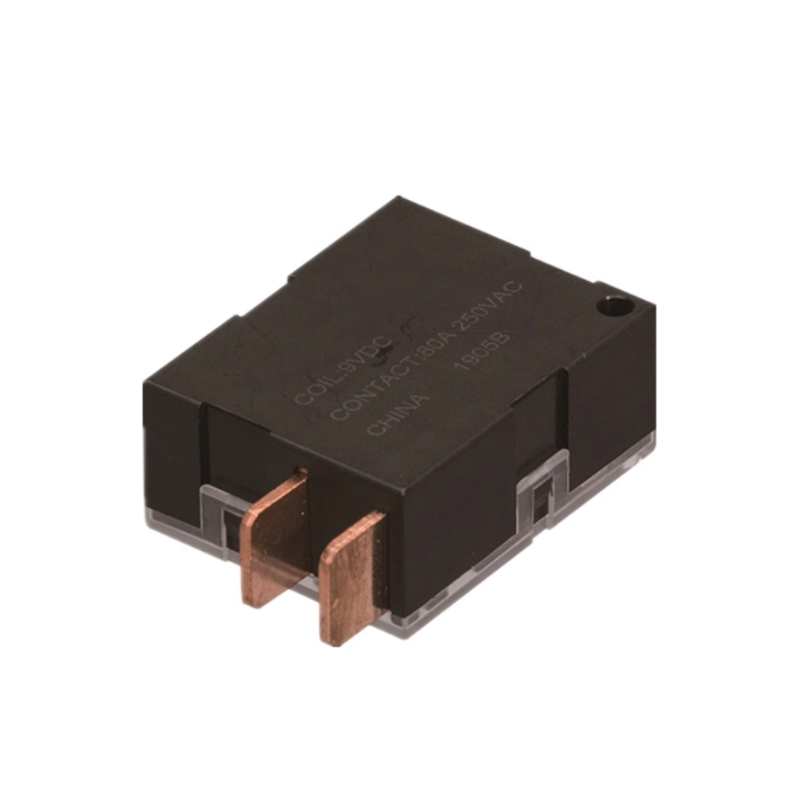

LW715C 80A MAGNETIC LATCHING RELAYS

LW715C 80A MAGNETIC LATCHING RELAYS

◆  Characteristic

>  80A switching capability.

>  Drived by motor with high magnetic resistant capability.

>  Low contact resistance.

>  Strong anti-shock and anti-vibration capability.

>  Outline size: 39.2×30.9×17mm.

◆  Ordering Information



2

 Latching Relay

 Part Number

 Coil Voltage

 Single Coil

80=80A

◆  Characteristics

 Insulation resistance                                                 1000MΩ (500VDC)


Dielectric

Strength

Between Coil & Contacts

Between Open Contacts

4000VAC 1min

2000VAC 1min

 Operate Time

90msec. Max.

 Release Time

90msec. Max.

  Shock      resistance

 Functional

 Destructive

98m/S2

980m/S2

 Vibration resistance

10~55Hz 1.5mm

 Humidity

5%-85%RH

 Ambient temperature

-40~+85℃

 Temination

 Fast connection

 Unit weight

45g

 Constrution

 Dust protected

◆  Contact Data

Contact form

1A/1B

Contact material

AgSnO2

 Contact resistance (1A 6VDC)

(Test point within 5mm distance from the casing )


Max: 1.2mΩ

 Contact Rating

80A 250VAC

 Max. Switching Current

80A

 Max. Switching Voltage

277VAC

 Max. Switching Power

20000VA

 Mechanical life

1×105

 Electrical  life ( Resistive)

1×104

◆ Coil

Coil power

4.0W  Single coil: 4.0W

◆  Coil Data


Rated Voltage

Pick-up voltag

Pulse Duration

Coil Resistance
Single coil

9

≤ 6.8

100

20±15%

9VDC-16VDC  100ms

Driving conditions:9VDC-16VDC 100ms pulse.

Note: Special ordering for other coil voltage.

Prepayment Energy Meter; AMR System;

Compound Switch; Automatic Control System.

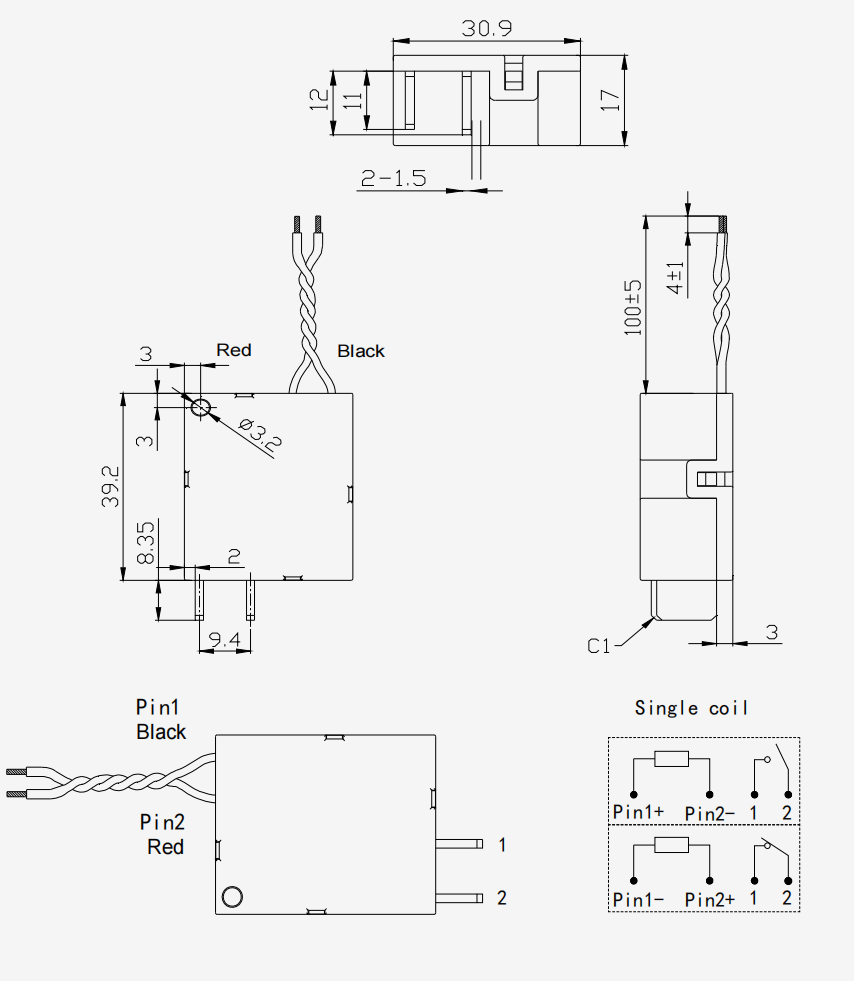

◆ Dimensions(mm)/  Circuit Diagram
