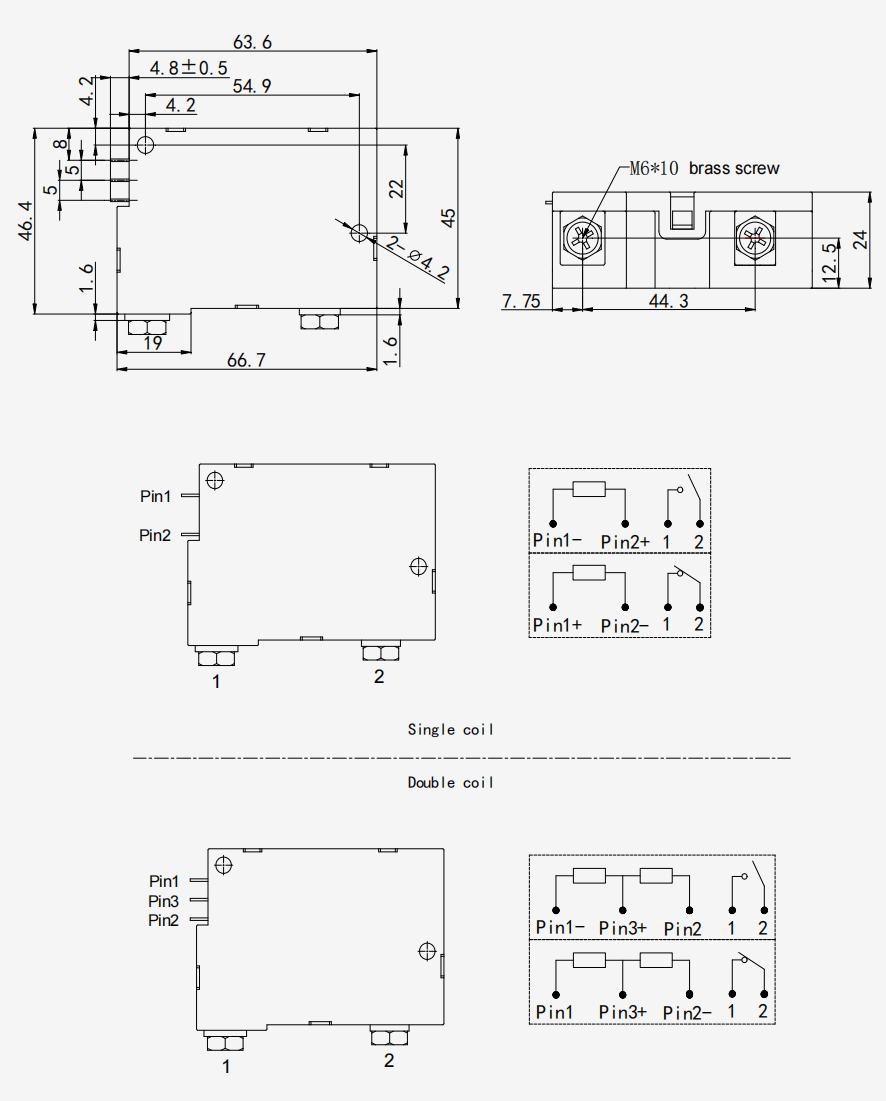

②

 Part Number

③

 Coil Voltage

④

D= Double Coil; S= Single Coil

⑤

100=100A

Dielectric

Strength

Between Coil & Contacts

Between Open Contacts

4000VAC 1min

2000VAC 1min

Operate Time

20msec. Max.

Release Time

20msec. Max.

Shock      resistance

Functional

Destructive

98m/S2

980m/S2

Vibration resistance

10~55Hz 1.5mm

Humidity

5%-85%RH

Ambient temperature

-40~+85℃

Temination

Fast connection

Unit weight

127g

Constrution

 Dust protected

 Contact material

AgSnO2

Contact resistance (1A 6VDC)

(Test point within 5mm distance from the casing )

Max: 1.0mΩ

Contact Rating

100A 250VAC

 Max. Switching Current

100A

 Max. Switching Voltage

277VAC

Max. Switching Power

25000VA

Mechanical life

1×105

 Electrical  life ( Resistive)

1×104

UC Class

Voltage

(Uc)

Current

(lc)

ON/OFF time (second)

Power Factor

Electrical Endurance (ops)

UC3

230VAC

100A

10s on /20s off

COS ∅ =1

COS∅ =0.5

5000

(Total:10000) 5000

Coil power

Single coil: 3.0W  Double coil: 6.0W

Rated Voltage

Pick-up voltage

Pulse Duration

Coil Resistance

 Single coil

6

≤ 4.5

≥ 50

12±10%

9

≤ 6.8

≥ 50

27±10%

12

≤ 9

≥ 50

48±10%

24

≤ 18

≥ 50

192±10%

Double coil

6

≤ 4.5

≥ 50

2×6±10%

9

≤ 6.8

≥ 50

2×13.5±10%

12

≤ 9

≥ 50

2×24±10%

24

≤ 18

≥ 50

2×96±10%
