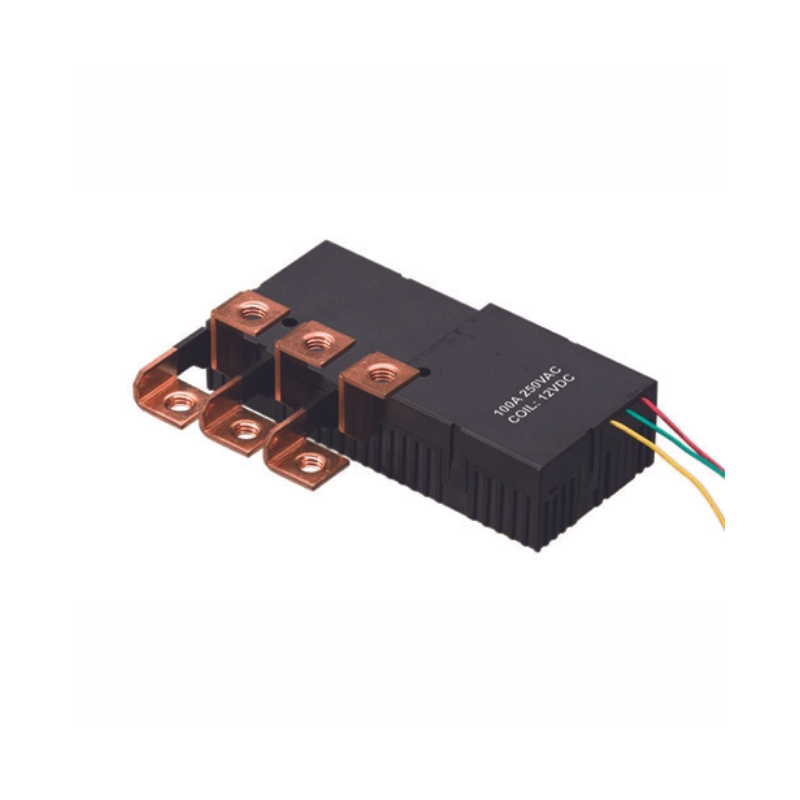

LW709J 3X100A MAGNETIC LATCHING RELAYS
◆ Characteristic
＞ 3x100A switching capability.
＞ Low coil consumption, ultra-low temperature rise.
＞ Low contact resistance.
＞ Strong anti-shock and anti-vibration capability.
＞ Outline size: 120×54×29.3mm.
◆ Ordering Information
| |
② Part Number | |
③ Coil Voltage | |
④ D= Double Coil; S= Single Coil | |
⑤ 100=100A |
◆ Characteristics
Insulation resistance | 1000MΩ (500VDC) | |
DielectricStrength | BetweenCoil&Contacts | 4000VAC 1min |
Between Open Contacts | 2000VAC 1min | |
Operate Time | 30msec. Max. | |
Release Time | 30msec. Max. | |
Shockresistance | Functional | 100m/S 2 (10g) |
Destructive | 1000m/S 2 (100g) | |
Vibration resistance | 10~55Hz 1.5mm | |
Humidity | 98%RH ,40℃ | |
Ambient temperature | -40~+70℃ | |
Temination | Fast connection | |
Unit weight | 380g | |
Constrution | Dust protected | |
◆ Contact Data
Contact form | 3A/3B |
Contact material | AgSnO2 |
Contact resistance | Max: 0.8mΩ |
Contact Rating | 3X100A 250VAC |
Max. Switching Power | 25000VA |
Mechanical life | 5×10 5 |
Electrical life | 1×10 4 |
◆ Coil
Coil power | Single coil: 2.5W Double coil: 5.0W |
◆ Coil Data
Rated Voltage | Pick-up voltage | Pulse Duration | Coil Resistance |
Single coil | |||
9 | 6.75 | 180 | 32.4±10% |
12 | 9 | 180 | 57.6±10% |
24 | 18 | 180 | 230.4±10% |
48 | 36 | 180 | 921.6±10% |
Double coil | |||
9 | 6.75 | 180 | 2×16.2±10% |
12 | 9 | 180 | 2×28.8±10% |
24 | 18 | 180 | 2×115.2±10% |
48 | 36 | 180 | 2×460.8±10% |
Note: Special ordering for other coil voltage.
◆ Typical Application
Prepayment Energy Meter; AMR System;
Compound Switch; Automatic Control System.

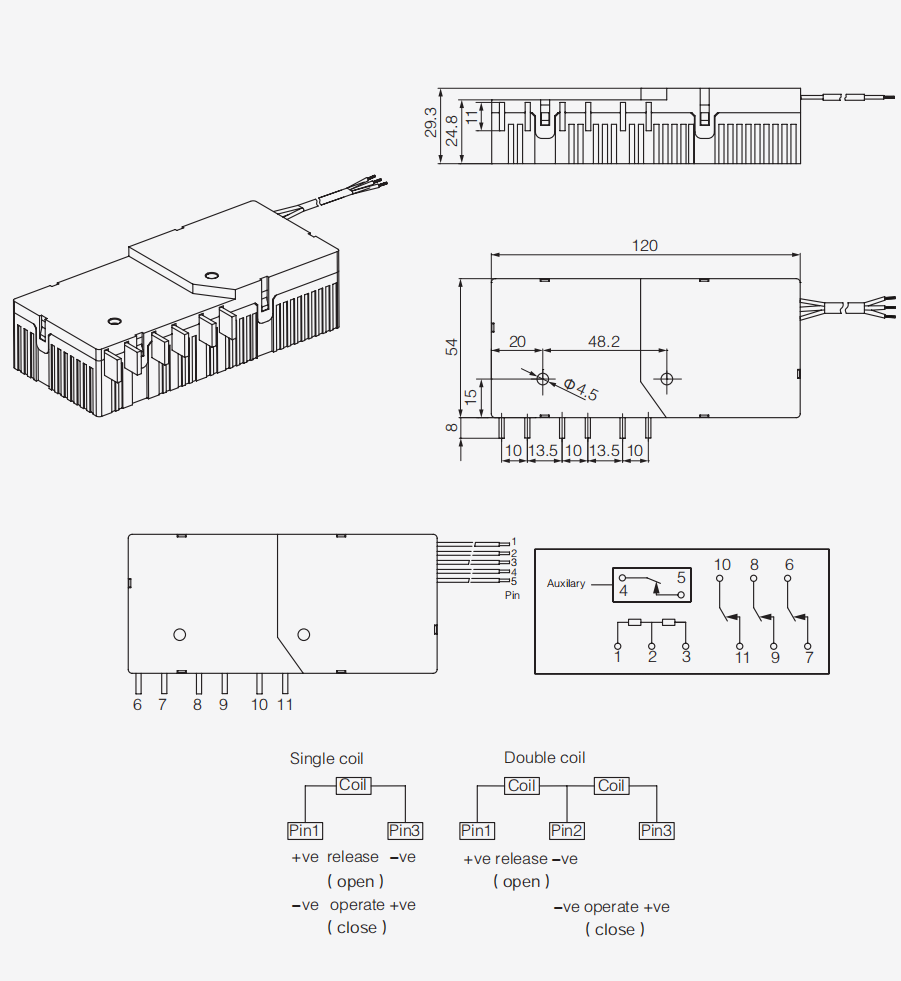

◆ Dimensions(mm)/ Circuit Diagram
