Split Core current Transformer LACT
    Publish time 2021-10-25 16:20
Split Core current Transformer LACT


Split Core Current Transformer LACT


Introduce:

HACT series provide precision measurement for energy monitoring applications to sensing power loading equipment without interrupting the lines. It has been specifically designed to be easy to open and yet maintain the accuracy required for intelligent meters, quick to fit around cables.

Features:

  • Reliable locking mechanism.

  • Ergonomic design.

  • Network equipment.

  • Measurement instruments.

Applications:

  • Energy and sub-metering products.

  • Electrical load monitoring.

  • Network equipment.

  • Measurement instruments.


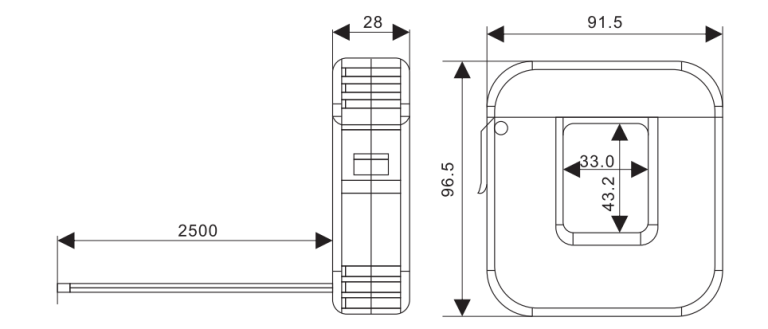

Electrical ParameterMechanical Parameter
Frequency50/60HzCasePC/UL94-V0
Rated Input300A-600ABobbinPA66
Measuring range5%In-120%InCoreSilicon steel
Rated Output40mA,50mA,60mA,100mA,0.333VConstructionScrew
Ratio Voltage0.72KV (AC)Operating Temp－25℃～＋75℃
Dielectric strength3.0KV/1mA/1minOperating Humidity≤85%
Insulation ResistanceDC500V/100MΩ minOutput ConnectionTerminal
MODELHACT
Current Ratio300A/100mA400A/40mA500A/50mA600A/60mA300~600/0.333V
Primary Current(A)300A400A400A600A300A~600a
Max. Current(A)360480600720720
Secondary Current(mA)100mA40mA50mA60mA0.333V
Load Resistance(Ω)50Ω50Ω50Ω50Ω/
Class0.5/1.00.5/1.00.5/1.00.5/1.00.5/1.0
Turns Ratio125.000694410000:110000:110000:1/
Protection Level7.5V0-P7.5V0-P7.5V0-P7.5V0-P
Insullation CategoryCATⅢ
Operating Condition-20℃～+50℃,≤85%RH,No condensation,IN-house&Any direction installable
Storage Condition-30℃～+50℃,≤85%RH,No condensation
